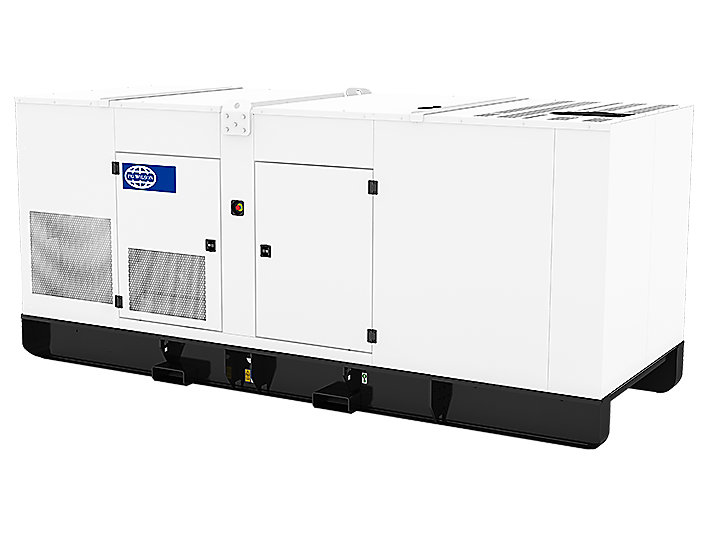

Generator Set Specifications
Engine Specifications
FG Wilson Diesel Engine
Perkins Diesel Engine
Alternator
Benefiting from a choice of leading alternators, the range incorporates the Leroy Somer alternator as standard across three phase models.
PowerWizard 2.1+
The FG Wilson PowerWizard range of digital control panels, combine straightforward menu navigation with advanced metering and protection technology. They are used in automatic mains failure applications in conjunction with transfer panels. Our PowerWizard range allows you to monitor and control your generator set with ease, whilst ensuring your unit operates within safe parameters and provides important diagnostic information when needed.
Design Criteria
Prime Rating These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours. Standby Rating These ratings are applicable for supplying continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted on these ratings. The alternator on this model is peak continuous rated (as defined in ISO 8528-3). Standard Reference Conditions Note: Standard reference conditions 25°C (77°F) Air Inlet Temp, 100m (328 ft) A.S.L. 30% relative humidity. Fuel consumption data at full load with diesel fuel with specific gravity of 0.85 and conforming to BS2869: 1998, Class A2.
Single-Source Supplier
Fully prototype tested with certified torsional vibration analysis available
World Wide Product Support
FG Wilson manufactures product in the following locations: Northern Ireland • Brazil • China • India • USA With headquarters in Northern Ireland, FG Wilson operates through a Global Dealer Network.
Optional Equipment
Starting/Charging
- 24V battery charger
General
- CE labelling
- 1000 Hour Service Interval
- Anti-condensation heater 230 VAC
- Coolant heater 230 VAC
- Earth Leakage
- Lube oil sump pump
- Dual wall fuel tank
Control Panel
- Synchronising control panel and motorised breakers
Alternator
- Permanent Magnet Generator (PMG)
Standard Equipment
Engine
- Air Cleaner
- Lube oil drain valve
- Engine filled with lubrication oil
- High Coolant Temperature Shutdown
- Low Oil Pressure Shutdown
Cooling
- Cooling package mounted radiator with high ambient capability
- Coolant Drain Valve
- 50% coolant antifreeze with corrosion inhibitor
- Pusher fan with guards
Exhaust
- Integrated spark arresting silencer with flexible connectors, in separate compartment
Fuel
- 784 L single wall fuel tank, 9 hr runtime @ 75% prime rating
- Auxiliary connections for customer supplied fuel transfer with 3 way fuel transfer system, internally mounted within the bunded area.
Alternator
- Leroy Somer
- SHUNT Excitation
- IP23 Protection
Control Panel
- PowerWizard 2.1+
Mounting
- Generator set soft mounted using captive vibration mounts
- Heavy duty steel base frame contains integral fuel tank
- Forklift pockets and heavy duty drag bar with skid plates
