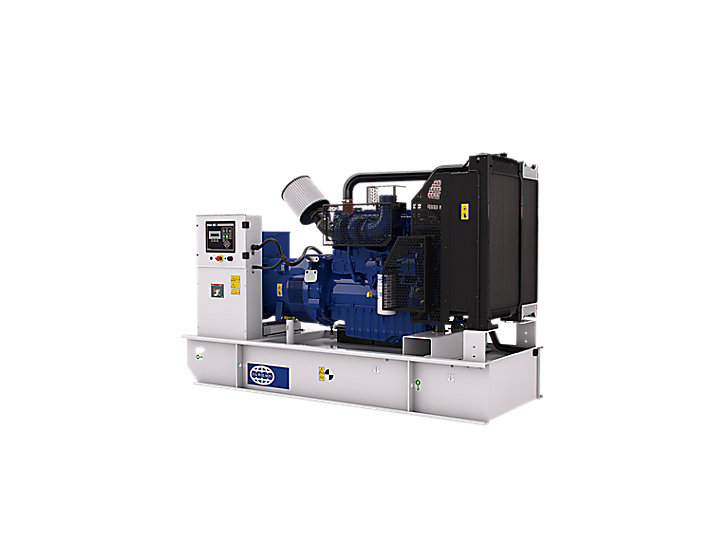

P249-5

Minimum Rating
225 KVA / 180 KW

Maximum Rating
250 KVA / 200 KW

Emissions/Fuel Strategy
Fuel Optimised


SKU: 76e116c9648c Categories: ,

Full Specifications

Generator Set Specifications

Minimum Rating 225 kVA / 180 kW
Maximum Rating 250 kVA / 200 kW
Emissions/Fuel Strategy Fuel Optimised
60 Hz Prime 225 kVA / 180 kW
60 Hz Standby 250 kVA / 200 kW
Frequency 60 Hz
Speed 1800 RPM
Voltage 127-480 Volts

Optional Equipment

Exhaust

  • Industrial, Residential, Critical Silencers

Alternator

  • Upgrade to Leroy Somer Alternator
  • Quadrature Droop Kit
  • Anti-Condensation Heater and Panel Circuitry (AH1)

Control Panels

  • PowerWizard 2.1+ Control Panel (PWT2.1)
  • EasYgen 2500 control panel

Starting/Charging

  • Lead Acid battery (Dry)

General

  • Upgrade to Standard Set for “CE” Certification
  • Compact Skid Base for Open Sets
  • Sound attenuated, steel or galvanised enclosure
  • Dual wall fuel tanks

Standard Equipment

Engine

  • Air Cleaner
  • Lube oil drain valve
  • Engine filled with lubrication oil
  • High Coolant Temperature Shutdown
  • Low Oil Pressure Shutdown

Cooling

  • Coolant Drain Valve
  • Fan, Fan drive and battery charging Alternator drive fully guarded to meet EC Machinery Directive
  • Cooling System filled with Coolant mix
  • Radiator and Cooling Fan

Exhaust

  • Exhaust stub pipe and gasket

Fuel

  • 8 Hr Fuel Tank
  • Fuel Fittings for Local and Remote Feed

Alternator

  • Marelli
  • SHUNT Excitation
  • IP23 Protection
  • Coastal Insulation Protection

Control Panel

  • PowerWizard 1.1+

Mounting

  • Base, Formed Steel with Single wall Fuel Tank
  • Certified Base Mounted Lifting Eyes, and Rear Drag Eyelets
  • Battery Tray and Cables
