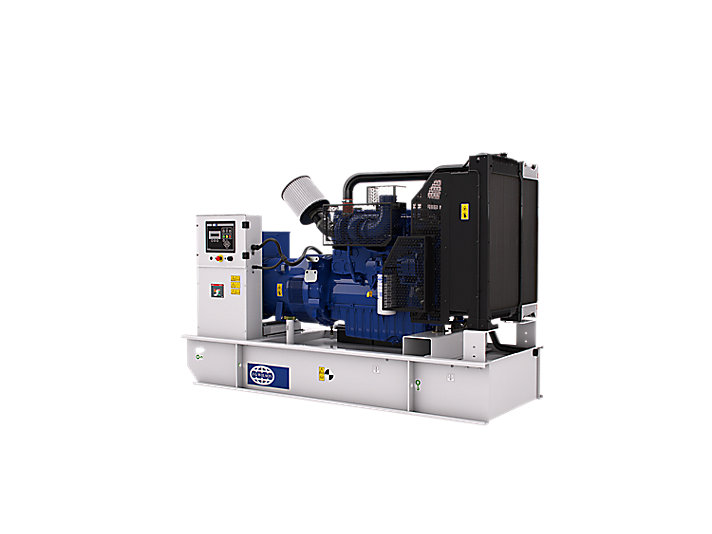

P313-5

Minimum Rating

281.3 kVA /225.0 kW

Maximum Rating

312.5 kVA / 250.0 kW

Emissions/Fuel Strategy

Standard reference conditions 25°C (77°F) Air Inlet Temp, 100m (328 ft) A.S.L. 30% relative humidity. Fuel consumption data at full load with diesel fuel with specific gravity of 0.85 and conforming to BS2869: 1998, Class A2.


SKU: 69fbac1f962c Categories: ,

Full Specifications

Generator Set Specifications

Minimum Rating 281 kVA / 225 kW
Maximum Rating 313 kVA / 250 kW
Emissions/Fuel Strategy Fuel Optimised
60 Hz Prime 281 kVA / 225 kW
60 Hz Standby 313 kVA / 250 kW
Frequency 60 Hz
Speed 1800 RPM
Voltage 127-480 Volts

Engine Specifications

Engine Model Perkins® 1506A-E88TAG3
Bore 112.0 mm (4.4 in)
Stroke 149.0 mm (5.9 in)
Governor Type Electronic
Displacement 8.8l (537.0 cu. in)
Compression Ratio 16.1:1

Optional Equipment

Exhaust

  • Industrial, Residential, Critical Silencers

Alternator

  • Upgrade to Leroy Somer Alternator
  • Quadrature Droop Kit
  • Anti-Condensation Heater and Panel Circuitry (AH1)

Control Panels

  • PowerWizard 2.1+ Control Panel (PWT2.1)
  • EasYgen 2500 control panel

Starting/Charging

  • Lead Acid battery (Dry)

General

  • Upgrade to Standard Set for “CE” Certification
  • Compact Skid Base for Open Sets
  • Sound attenuated, steel or galvanised enclosure
  • Dual wall fuel tanks

Standard Equipment

Engine

  • Air Cleaner
  • Lube oil drain valve
  • Engine filled with lubrication oil
  • High Coolant Temperature Shutdown
  • Low Oil Pressure Shutdown

Cooling

  • Coolant Drain Valve
  • Fan, Fan drive and battery charging Alternator drive fully guarded to meet EC Machinery Directive
  • Cooling System filled with Coolant mix
  • Radiator and Cooling Fan

Exhaust

  • Exhaust stub pipe and gasket

Fuel

  • 8 Hr Fuel Tank
  • Fuel Fittings for Local and Remote Feed

Alternator

  • Marelli
  • SHUNT Excitation
  • IP23 Protection
  • Coastal Insulation Protection

Control Panel

  • PowerWizard 1.1+

Mounting

  • Base, Formed Steel with Single wall Fuel Tank
  • Certified Base Mounted Lifting Eyes, and Rear Drag Eyelets
  • Battery Tray and Cables
